Discover top-quality stay-type wire insulators at unbeatable stay insulator price. Built to meet IEC, ANSI, BS, AS, DIN, and GB standards, our durable porcelain stay insulators ensure reliable electrical insulation and mechanical support for overhead stay wires—perfect for diverse power transmission needs.
Our Stay Insulators include 54-1, 54-2, 54-3, 54-4 and so on.
Standard: IEC, ANSI, BS, AS, DIN, GB and etc.
Color: brown, gray, sky blue and etc.

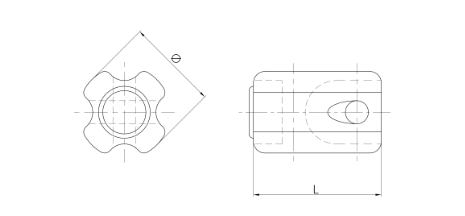

Product code | Mode | Main dimension(mm) | |
| ⌀ | L | ||
| 50401A14 | 54-1 | 64 | 89 |
| 50401A15 | 54-2 | 73 | 108 |
| 50401A16 | 54-3 | 86 | 104 |
| 50401A17 | 54-4 | 89 | 171 |
Our stay wire insulators, available in models such as 54-1, 54-2, 54-3, 54-4, and more, boast a range of features to ensure optimal performance and versatility:
Diverse Models: Our product line encompasses various models, including 54-1, 54-2, 54-3, 54-4, providing options to meet specific requirements and applications.
International Standards: Compliant with industry standards such as IEC, ANSI, BS, AS, DIN, GB, and more, ensuring that our electric power fittings adhere to recognized global specifications for quality and performance.
Color Options: Available in a selection of colors, including brown, gray, sky blue, and more. This not only allows for aesthetic considerations but also facilitates easy identification and coordination with different environments.
Versatility: Designed to accommodate diverse applications, these hardware fittings for transmission lines offer versatility in their use across various power distribution and transmission scenarios.
Robust Construction: Engineered for durability and resilience, our insulators for sale are constructed to withstand mechanical stresses, environmental conditions, and the rigors of long-term use in diverse settings.
Comprehensive Range: Our product line includes a comprehensive range of Stay Arm Insulators, accommodating various voltage levels and system configurations, providing solutions for different electrical network needs.
A stay insulator is a key component used in overhead transmission and distribution lines to provide electrical insulation and mechanical strength. Commonly made of porcelain or polymer, it is installed on stay wires to prevent leakage currents and ensure safety in power systems. Stay insulators help maintain proper tension, minimize risks of short circuits, and improve the reliability of electrical networks. They are widely used in both urban and rural power distribution setups, making them essential for stable and secure energy transmission.
Stay type insulators are widely used in power transmission and distribution to ensure safety, reliability, and long-term durability. Key applications include:
Overhead Transmission and Distribution Lines: Provide essential insulation and stability for medium and low voltage overhead networks.
Rural and Railway Networks: Deliver reliable insulation and support for power distribution in rural areas and railway systems.
Pole and Tower Safety: Prevent electrical faults and maintain proper insulation when poles or towers are under mechanical stress.
By combining strong electrical insulation with high mechanical strength, stay type insulators enhance system performance and reduce maintenance needs. Choosing quality stay insulators from Yong Guang ensures safe, efficient, and dependable operation in diverse utility and industrial applications.
